onework TOUCH

The smart interface between people and space

The onework TOUCH is an intelligent KNX touch panel for the central operation and visualization of room functions. Users control lighting, shading, room climate and individually defined scenes conveniently and intuitively via the high-resolution 4-inch touch display.

The onework TOUCH can be used as a stand-alone KNX control panel and can be fully integrated into KNX-based building automation systems. In combination with the onework CORE, it serves as an intuitive user interface for room automation for light, temperature, air quality and glare protection.

The panel is mounted on standard flush-mounted or surface-mounted boxes and, with its compact design, integrates unobtrusively into modern working environments.

Room control

Central room functions such as lighting, shading, room climate and ventilation can be conveniently controlled via the touch panel. It can be used both as a stand-alone KNX control panel and in combination with the onework CORE.

Scene control

Predefined scenes allow you to quickly switch between different room situations, such as a meeting, presentation or cleaning.

Intuitive user interface

The capacitive 4-inch touch display with a clearly structured user interface makes operation simple and easy to understand.

Automatic activation

An integrated proximity sensor automatically activates the display as soon as a person approaches the panel.

Full KNX compatibility

Manufacturer-independent and flexible to use in any KNX environment.

Intuitive operation

Push-button look for maximum user-friendliness - no changeover necessary.

Versatile control

Light, blinds/shutters, windows, temperature and scenes at the touch of a finger.

Advanced functions

Automatic/manual recognition, window instructions and intelligent automations with onework CORE.

The onework TOUCH enables convenient control and visualization of KNX devices and building functions directly in the room. Users can intuitively operate central room functions and activate individual scenes via the touch display.

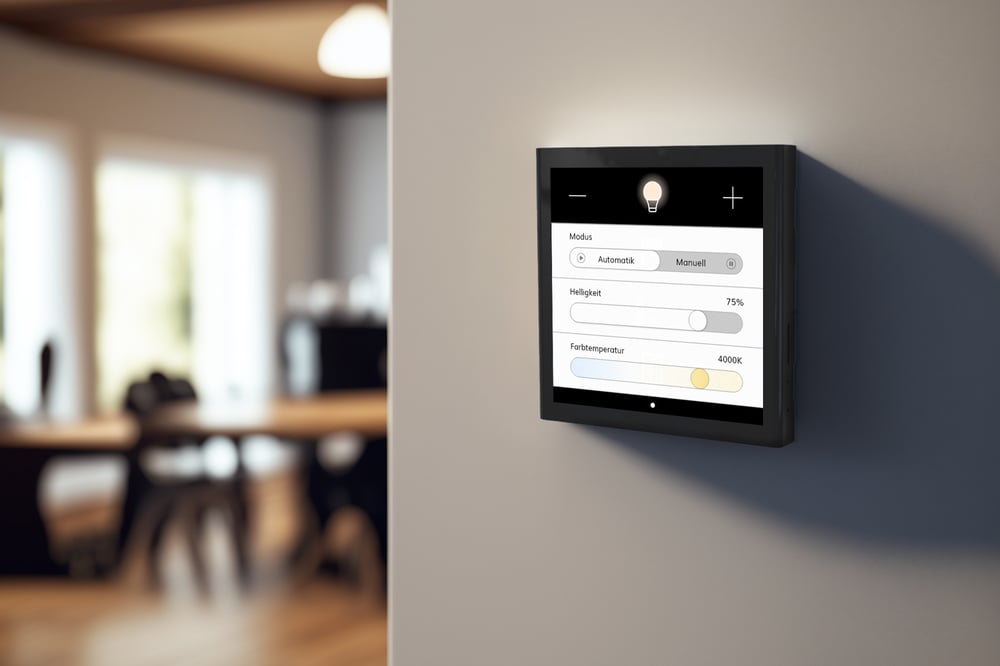

Lighting

Control of lighting systems such as switching, dimming or adjusting color temperatures. Tunable White luminaires can also be conveniently operated via the panel.

Shading

Control of blinds, shutters and curtains to regulate daylight and glare protection.

Indoor climate

Operating heating, cooling and ventilation systems and adjusting the room temperature.

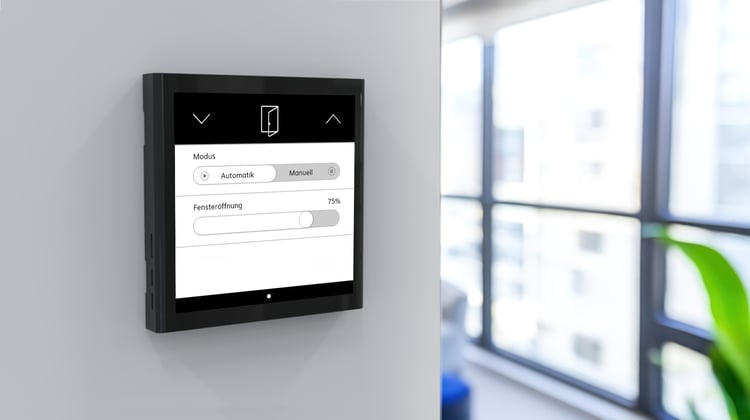

Window control

Status display and specific instructions for opening/closing

Scenes

Activation of predefined room scenes for different usage situations such as meetings, presentations or cleaning.

Display

4" LCD touch display
Resolution: 480 x 480 px
capacitive 2.5D touch panel

System

CPU: Quad-Core Cortex-A35
Memory: 2 GB
Memory: 8 GB eMMC

Communication

KNX bus (twisted pair)
WLAN 2.4 / 5 GHz
Bluetooth 5.4
Ethernet RJ45

Sensors

Proximity sensor
Light sensor
Dual array microphones

Power supply

24 V DC (9 to 36 V)

Environmental conditions

Operating temperature 0 °C to 40 °C
Relative humidity up to 90 %, non-condensing

Dimensions

86 × 86 × 10.5 mm Front dimensions
86 × 86 × 39.5 mm Installation depth

Über uns_Zeitstrahl_KNX CE+ROHS

Display

4-inch capacitive touchscreen

Communication

KNX TP (Twisted Pair)

Configuration

Exclusively via ETS parameters

Design

Compact format in push-button design
